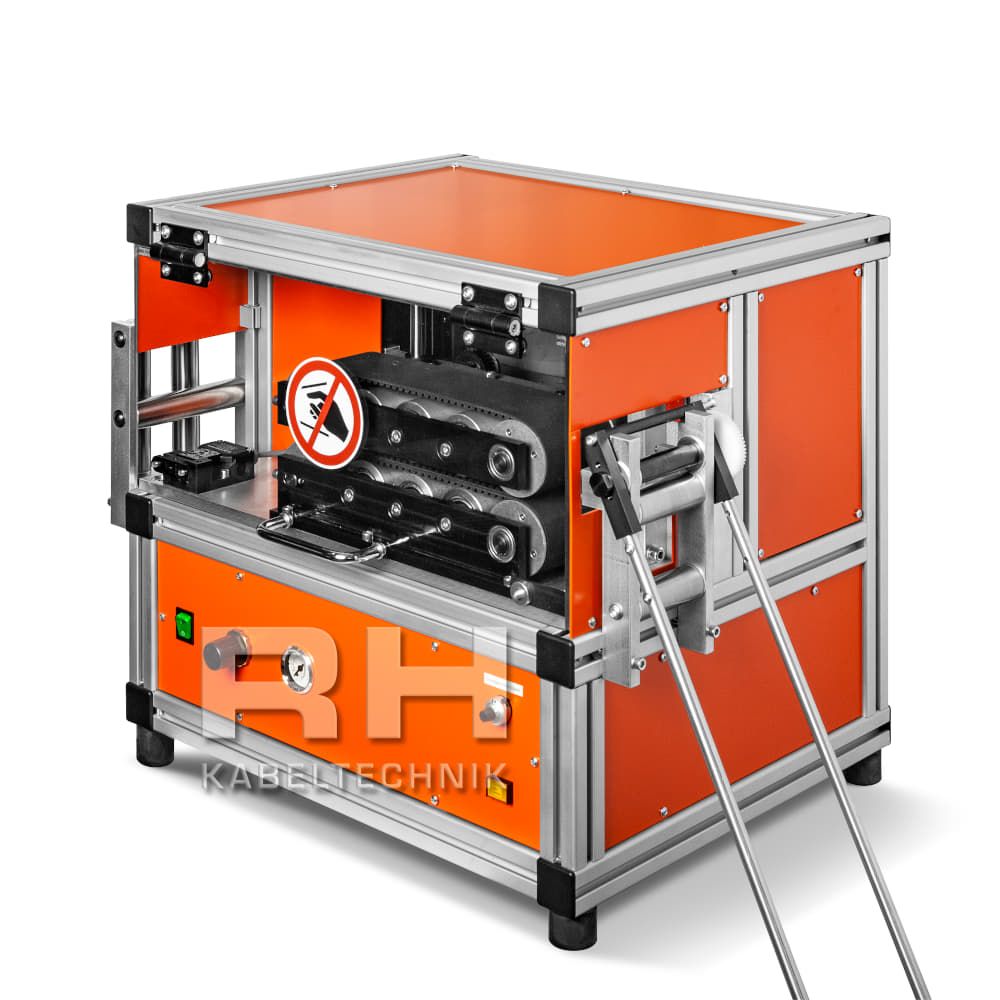

Material feed 30/85
Electric material feed for cables, stranded wires, tubes with a diameter up to 30 mm or width of 85 mm
With belt drive for:
Cables, stranded wires, tubes, flat cables, tapes, films, steel wires or similar materials with a diameter up to 30 mm or width of 85 mm.
Transport speed adjustable up to max. 70 m/min. Speed controlled via cutting machine or potentiometer (base speed) and pneumatic raising of belt via pendulum, adjustable contact pressure. The material feed supplies the cutting machine with material without any slipping, ensuring high length accuracy.
